Product Overview

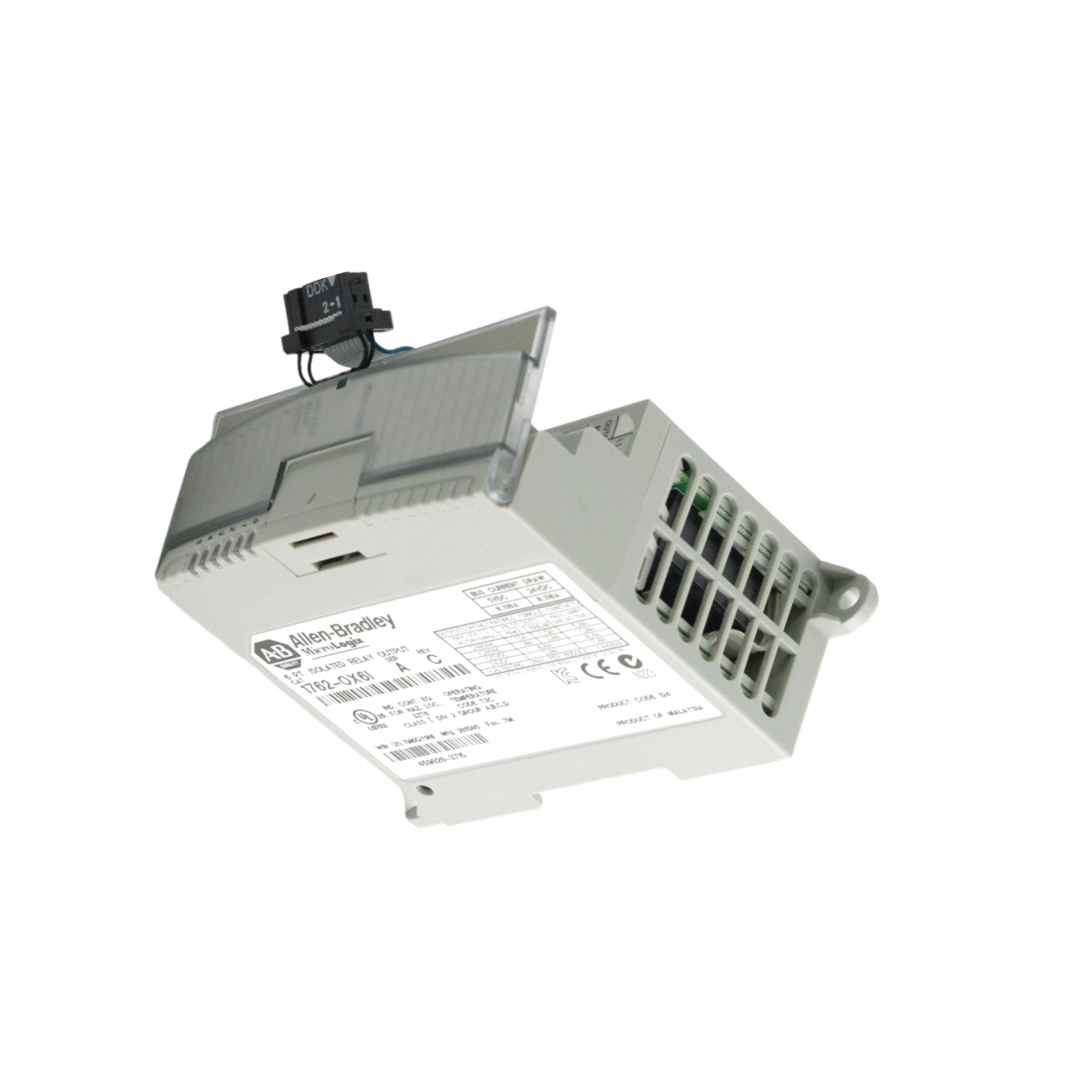

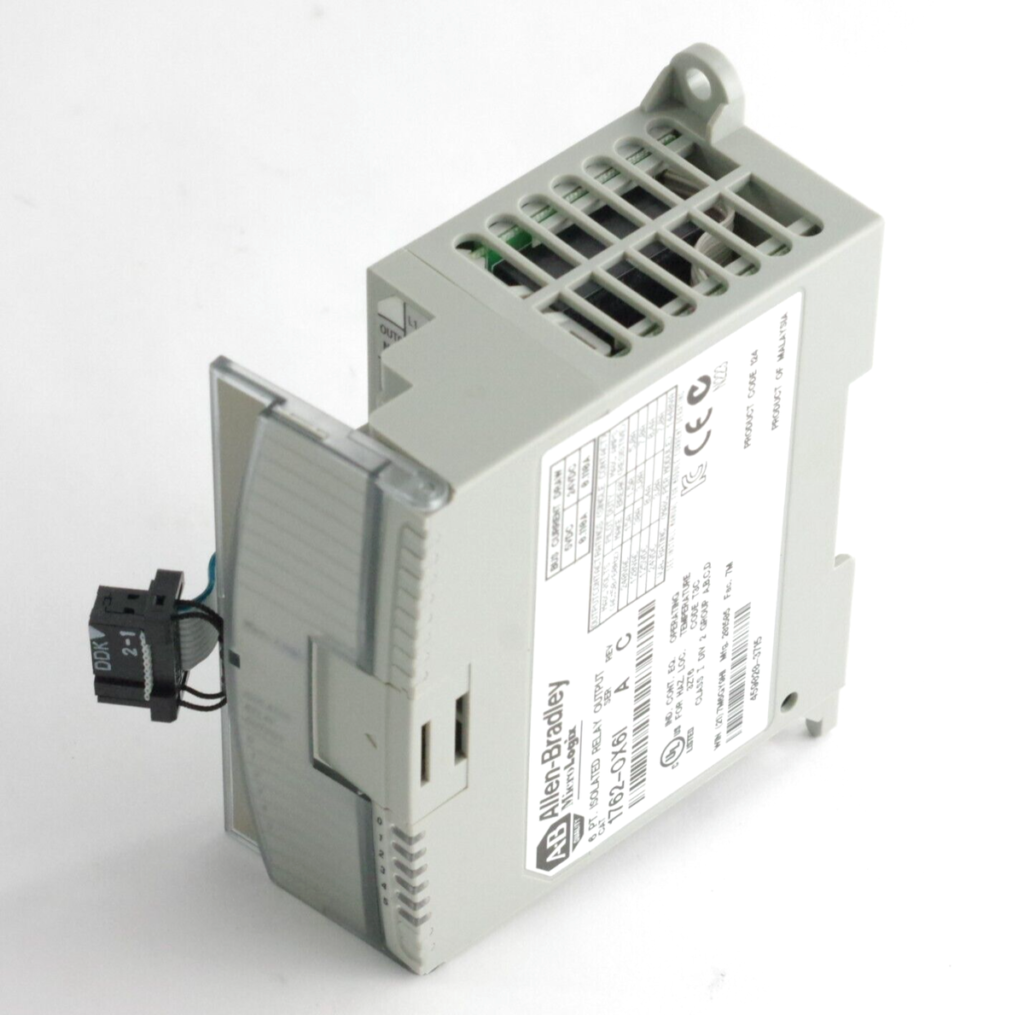

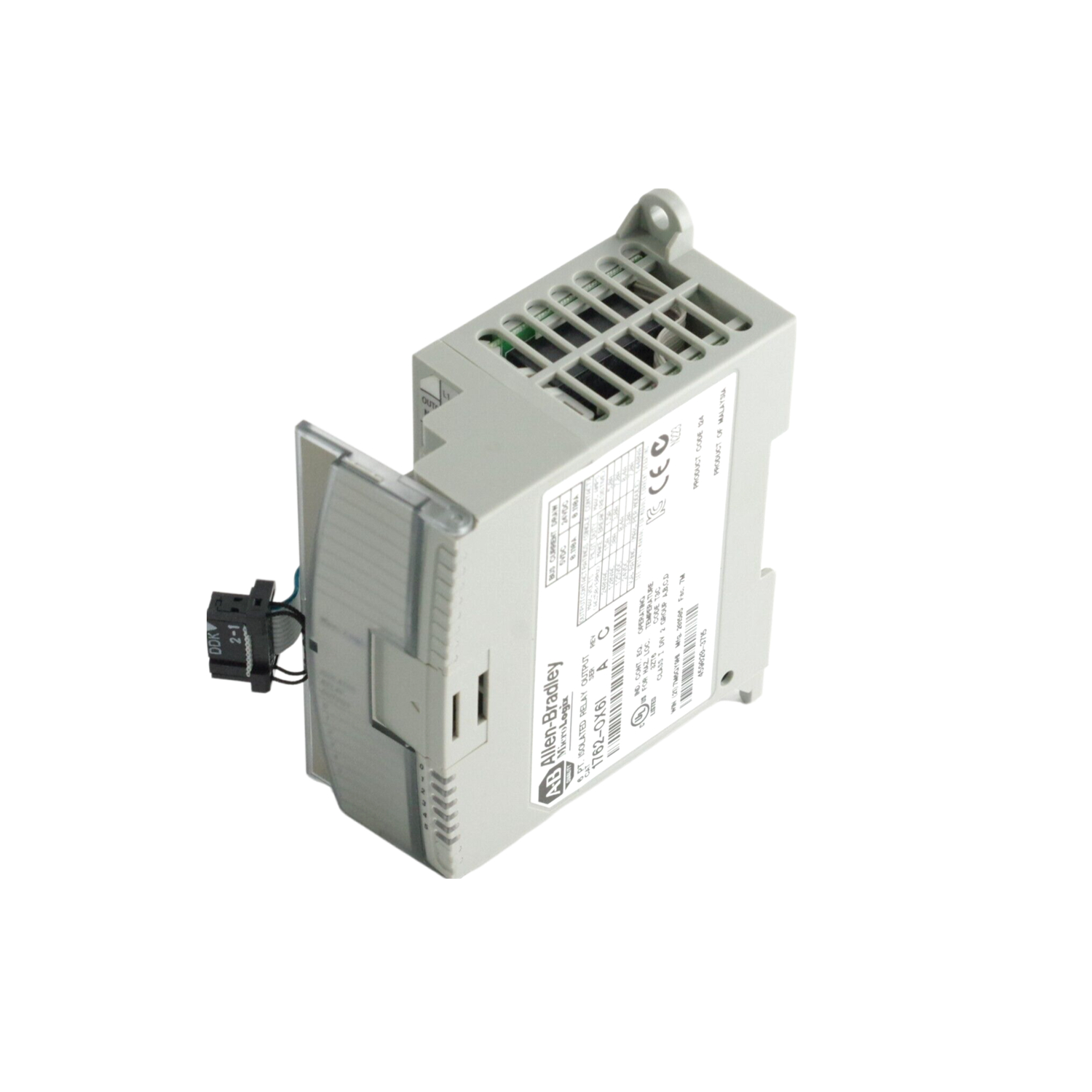

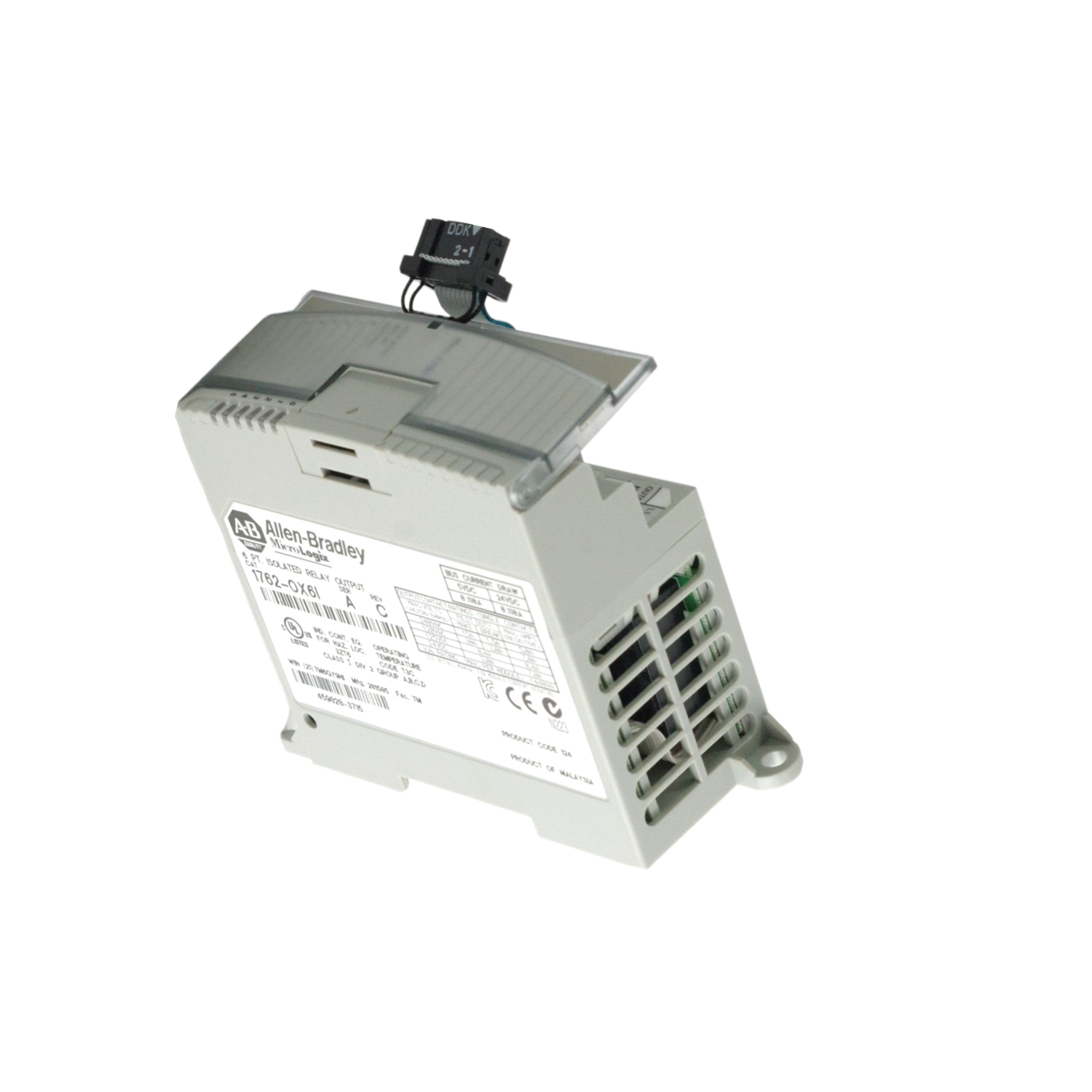

The Allen-Bradley **1762-OX6I** is an isolated relay output module from the MicroLogix 1200 series. It features six individually isolated Form C relay outputs. Each output operates as a single-pole double-throw switch. This module handles both AC and DC loads. The voltage range spans 5 to 125 VDC and 5 to 265 VAC. The **1762-OX6I** provides reliable switching for diverse industrial automation tasks.

Application Scenarios

This module suits applications requiring isolated relay outputs. Use it with MicroLogix 1100, 1200, and 1400 controllers. Typical uses include motor control, valve actuation, and signal routing. The module supports up to four units with MicroLogix 1100. It supports up to six units with MicroLogix 1200 and seven with MicroLogix 1400. Industries such as manufacturing, packaging, and material handling benefit from its robust design.

Technical Specifications

The **1762-OX6I** provides six individually isolated output groups. Each group uses a Form C relay contact. The maximum continuous current per point is 7 A. The bus current draw is 110 mA at 5 VDC and 110 mA at 24 VDC. The signal delay for the ON transition is 10 ms maximum, with a typical delay of 6 ms. The OFF transition delay is 20 ms maximum, typically 12 ms. The module dimensions are 90 x 40.4 x 87 mm, with a height of 110 mm including mounting tabs. It weighs approximately 220 grams. The operating temperature range is 0 to 55 °C. The module mounts on a DIN rail or panel using two screws.

Installation & Maintenance Guide

Install the module in a clean, dry environment. Maintain at least 2 inches of clearance on all sides for airflow. Use a DIN rail with end anchors for standard installations. For high-vibration environments, secure the module with two panhead screws. Connect the module to the controller using the included ribbon cable. Ensure the bus connector is fully seated. No periodic maintenance is required. Always power down the system before inserting or removing the module.

Packing List

1 x Allen-Bradley 1762-OX6I Isolated Relay Output Module
1 x Installation Manual
