Product Overview

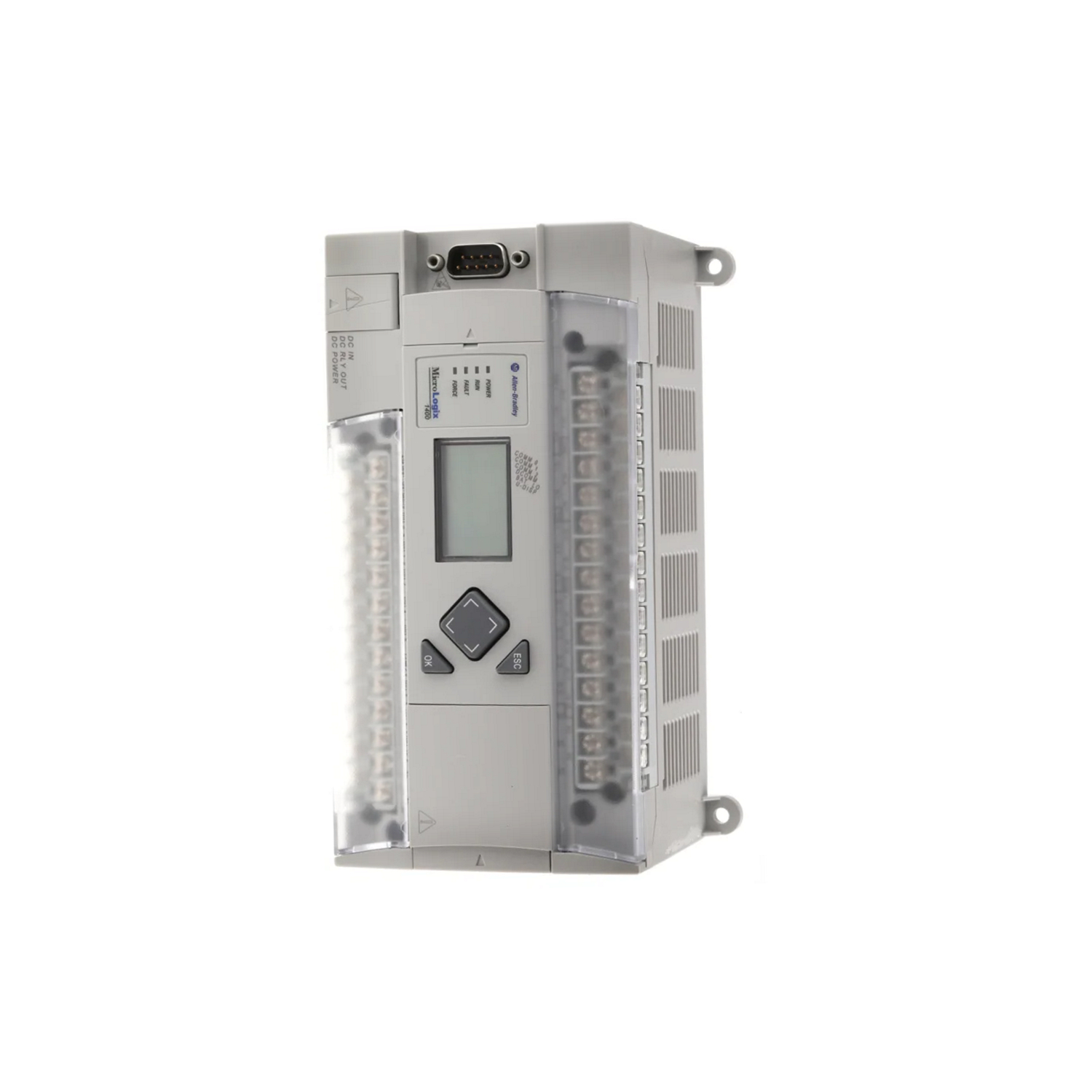

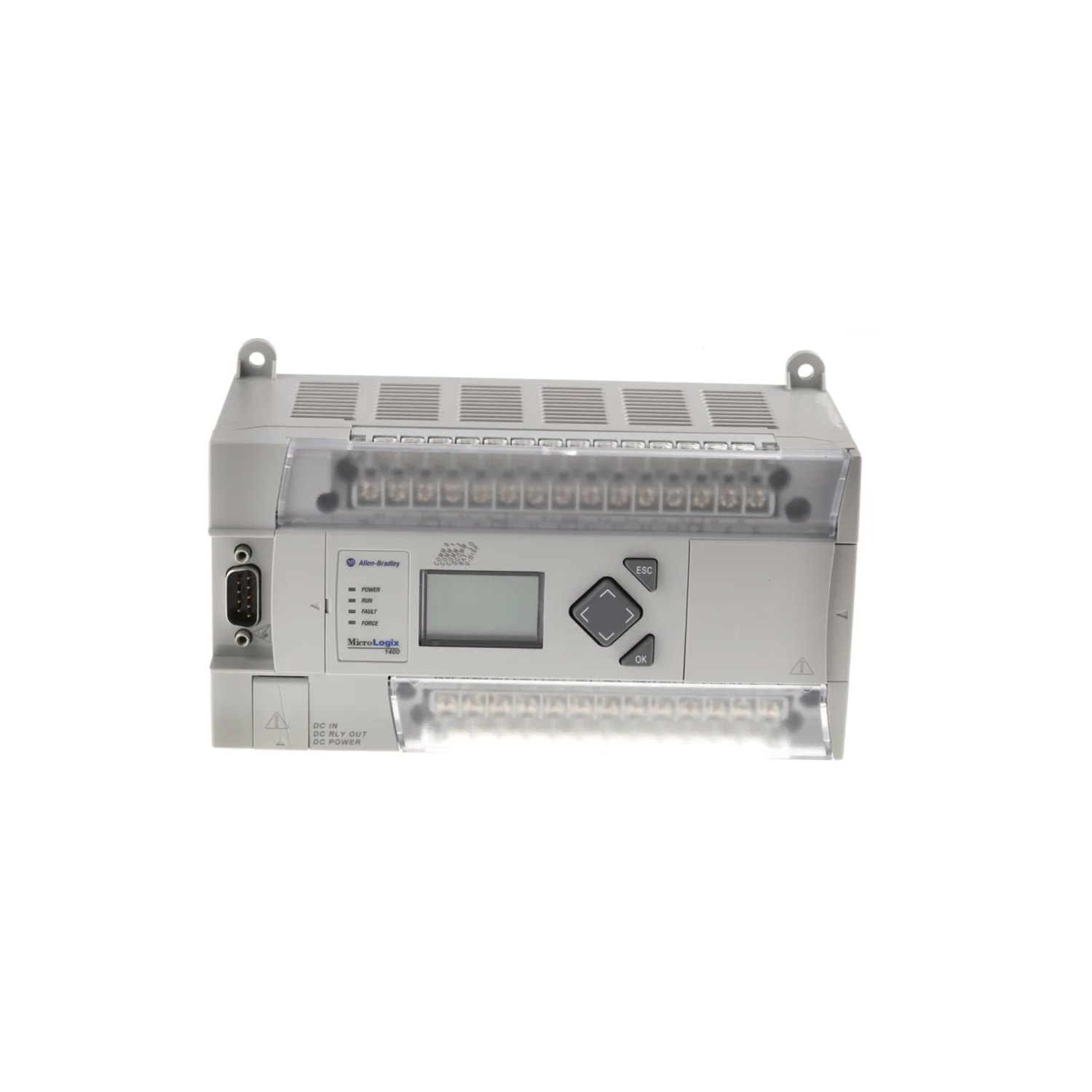

The Allen-Bradley 1766-L32BXB is a compact MicroLogix 1400 controller. It offers 32 built-in I/O points. This controller supports Ethernet/IP communication. It also includes a real-time clock for time-based applications. The unit requires 24V DC power. It features a backlit LCD for easy status viewing.
Application Scenarios
This controller suits mixed I/O applications. Use it for counting, totalizing, and simple motion control. The fast inputs handle high-speed signals. The relay outputs control various loads. Typical environments include clean, dry industrial settings. It works well in machine control and process automation.
Technical Specifications
- Manufacturer: Rockwell Automation / Allen-Bradley
- Part Number: 1766-L32BXB
- Product Family: MicroLogix 1400
- Inputs: 12 Fast 24V DC and 8 Normal 24V DC
- Outputs: 6 Relay, 3 Fast 24V DC, and 3 Normal 24V DC
- Memory: 20 KB (10 KB user program + 10 KB data)
- Communication Ports: 1 RS232/RS485, 1 isolated RS232, 1 Ethernet
- Protocols: DF1, ASCII, Modbus RTU, DNP3, DH485, Ethernet/IP, Modbus TCP/IP
- Operating Power: 24V DC, 50W (7.5W without expansion)
- Dimensions: 90 x 180 x 87 mm (3.5 x 7.087 x 3.43 in)
- Weight: 2 lbs (0.9 kg)
- Mounting: Panel or DIN rail
- Enclosure: Open type
Installation & Maintenance Guide
Mount the controller on a panel or DIN rail. Use 24V DC power supply. Ensure proper grounding. Keep the enclosure free from dust. The operating temperature is 0-55°C. Do not use in wet locations. For maintenance, periodically check connections and battery backup.
Packing List
1 x Allen-Bradley 1766-L32BXB MicroLogix 1400 Controller
