Product Overview

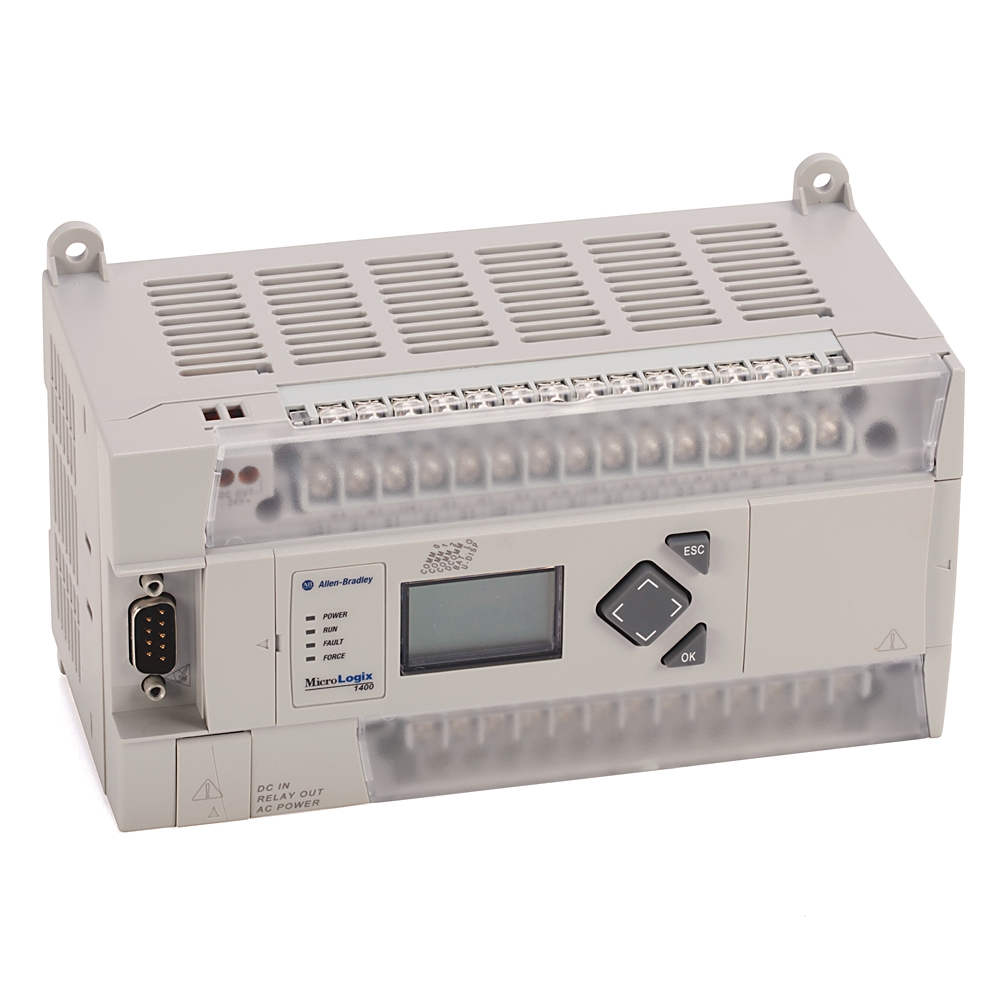

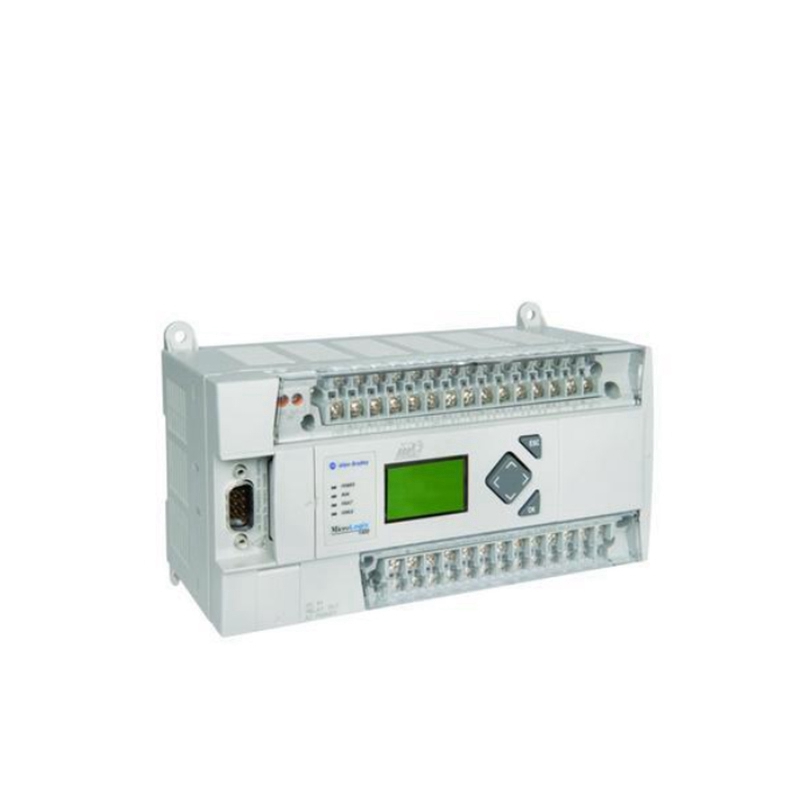

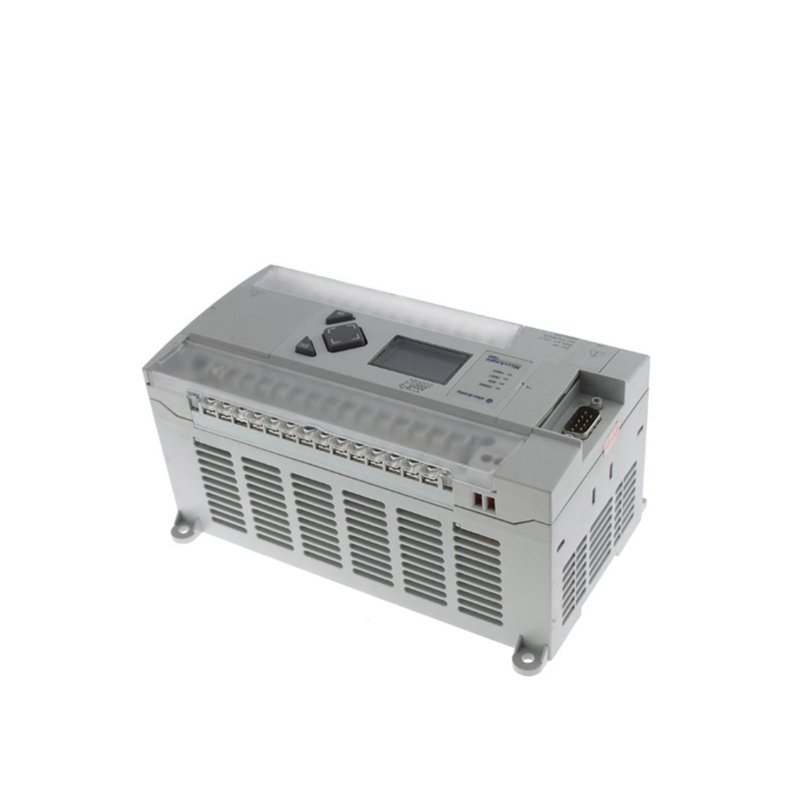

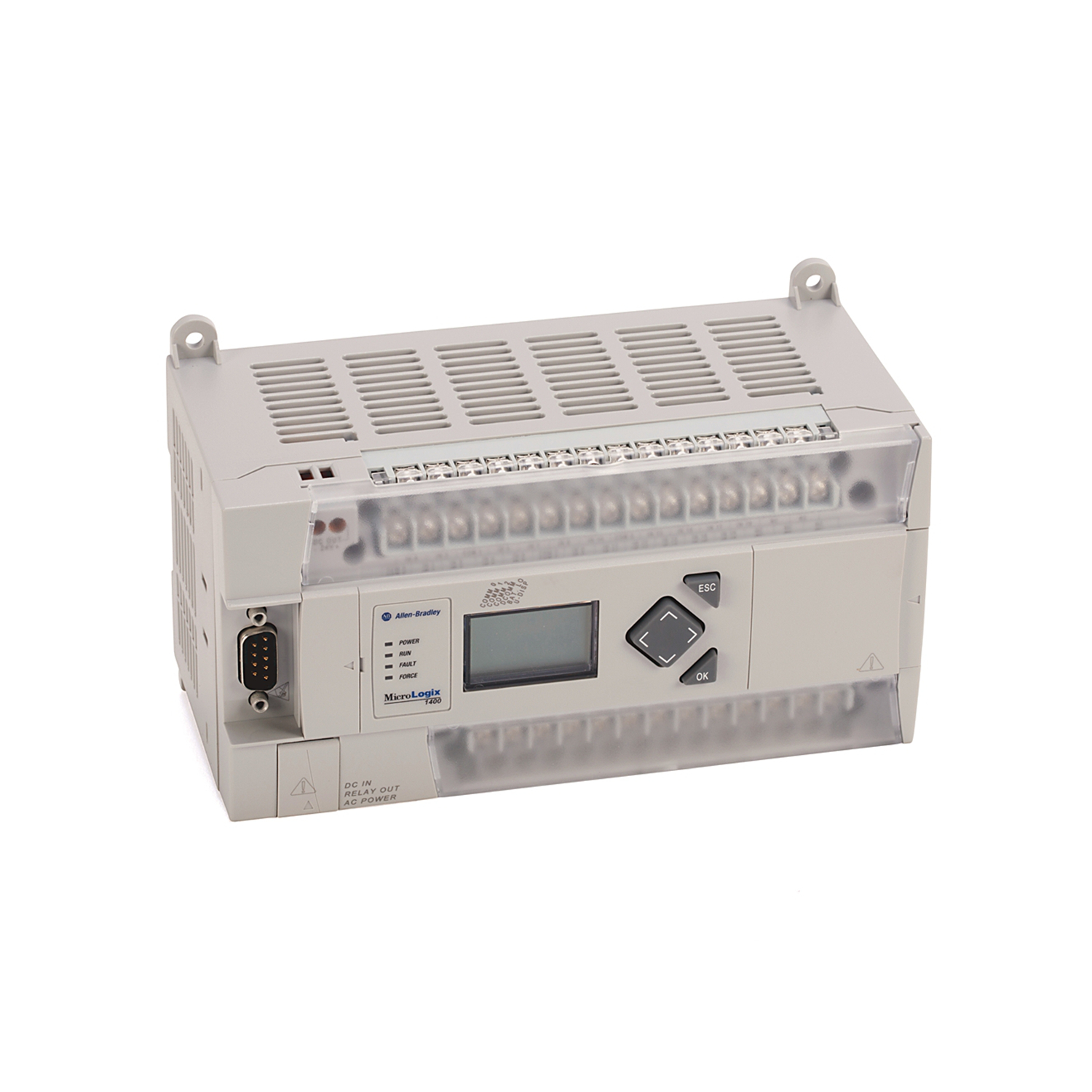

The Allen-Bradley 1766-L32BWAA is a MicroLogix 1400 programmable logic controller. It offers 32 digital I/O points and 6 analog I/O points. The digital I/O includes 20 inputs and 12 relay outputs. The analog I/O includes 4 inputs and 2 outputs. This controller has three communication ports. These include a combo RS232/RS485 port, an isolated RS232 port, and an Ethernet port. It supports protocols like DF1, ASCII, MODBUS RTU, DNP3, and Ethernet/IP. The built-in real-time clock provides time-based control for applications. The controller includes a built-in LCD with backlight. This allows network configuration and I/O status viewing. The controller uses 120-240V AC power. It has 20 KB memory for user programs and data. The 1766-L32BWAA supports expansion with up to seven 1762 I/O modules.
Application Scenarios
This controller suits various industrial automation tasks. Use it for machine control, packaging lines, and material handling. The Ethernet port enables remote monitoring and data exchange. The embedded analog I/O fits applications needing analog signal processing. The real-time clock helps in time-stamped data logging. The compact size allows installation in tight spaces. The controller works in clean and dry industrial environments. Over-voltage category II circuits are suitable.
Technical Specifications
The controller has 20 digital 120V AC inputs. It includes 4 analog inputs with 0-10VDC range. The resolution is 12-bit. Outputs consist of 12 relay outputs and 2 analog outputs. The analog output resolution is 12-bit unsigned integer. Power supply accepts 110-240V AC. Frequency range is 47-63 Hz. Power consumption is 120 VA. Inrush current is 25 A at 120V AC for 8 ms. At 240V AC, it is 40 A for 4 ms. Communication includes one isolated RS232/485 port. A non-isolated RS232 port is also present. One Ethernet port supports multiple protocols. Serial protocols include DF1, ASCII, MODBUS RTU, DNP3, and DH485. Ethernet protocols include Ethernet/IP, DNP3, and MODBUS TCP/IP. The controller has 6 high-speed counters at 100 kHz. User program memory is 10 KB. Data memory is 10 KB. Dimensions are 3.5 x 7.08 x 3.43 inches. Weight is 2 pounds (0.9 kg). Mounting options are panel and DIN rail.
Installation & Maintenance Guide
Mount the controller on a panel or DIN rail. Install it in a clean and dry environment. Ensure the circuit does not exceed Over-Voltage Category II. Connect power supply voltage between 110V and 240V AC. Use proper fusing to protect against inrush current. The controller has battery-backed RAM. Replace the battery as needed to retain data during power loss. Avoid inserting or removing the memory module under power unless supported. Follow the user manual for detailed wiring and setup.
Packing List
The package includes one 1766-L32BWAA MicroLogix 1400 controller. A quick start guide is also included. Optional accessories like the 1766-MM1 memory module are sold separately.
