Product Overview

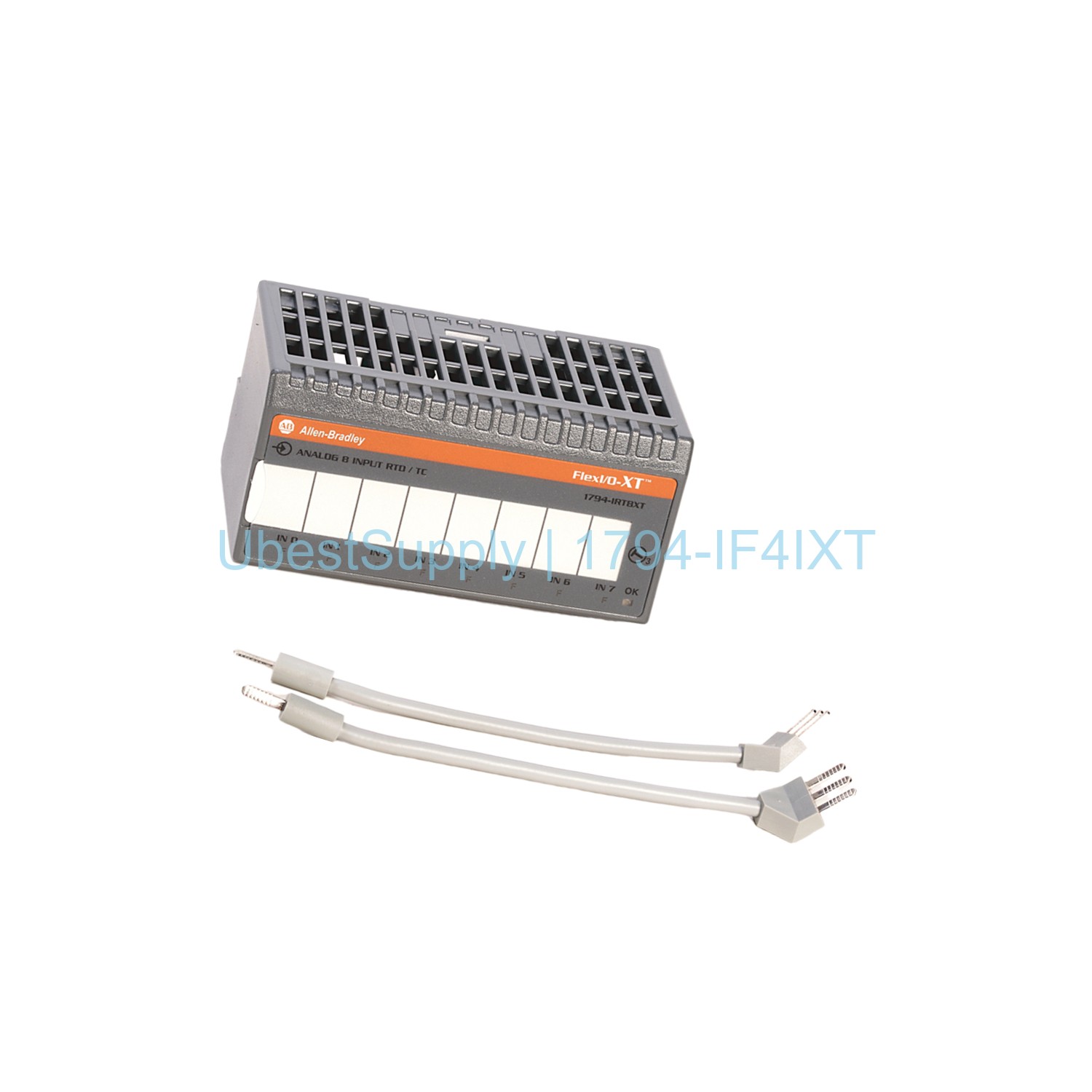

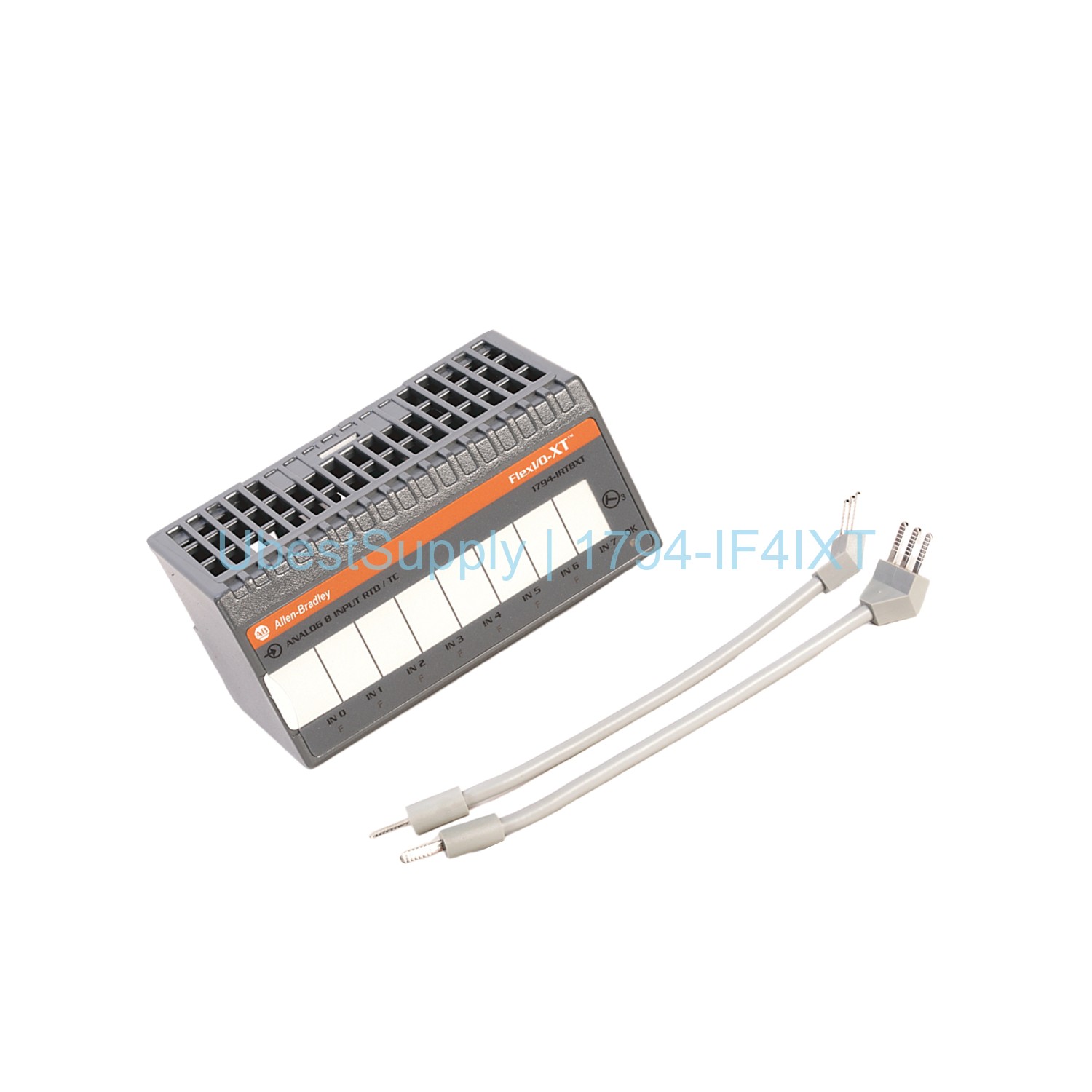

The 1794-IF4IXT is a FLEX XT I/O isolated input analog module from Allen-Bradley/Rockwell Automation. It provides 4 isolated analog inputs for industrial applications. This module handles signals from sensors over long cables. It rejects interference and ground potential differences.

Each channel supports ±10 Volts or 0 to 20 mA. You can configure each input individually for voltage or current. The module works with 2-wire, 3-wire, and 4-wire sensors.

Application Scenarios

Use the 1794-IF4IXT in harsh industrial environments. It suits process control, manufacturing, and oil & gas applications. The extended temperature range (-20 to 70°C) makes it ideal for outdoor or unheated areas. It provides reliable signal isolation for low-voltage field signals.

Technical Specifications

• Input channels: 4 isolated analog inputs
• Conversion method: Sigma Delta
• Rated voltage: 31.2 Volts DC
• Power dissipation: 2 Watts, 6.8 BTU/hour
• Resolution: 16-bit unipolar, 15-bit bipolar
• Operating temperature: -20 to 70 °C
• Dimensions: 46 mm x 94 mm x 53 mm

Installation & Maintenance Guide

Mount the module on a compatible base terminal: 1794-TBN, 1794-TB2, 1794-TB3, 1794-TB3S, 1794-TB3T, 1794-TB3TS, 1794-TBNK, 1794-TB3K, 1794-TB3SK, 1794-TB3TK, or 1794-TB3TSK. Ensure the system is powered off before installation. Connect field wiring according to the user manual. The module is factory calibrated. No periodic recalibration is needed under normal conditions.

Packing List

• 1 x 1794-IF4IXT module
• 1 x installation guide

We ship via Fedex, UPS, or DHL.
