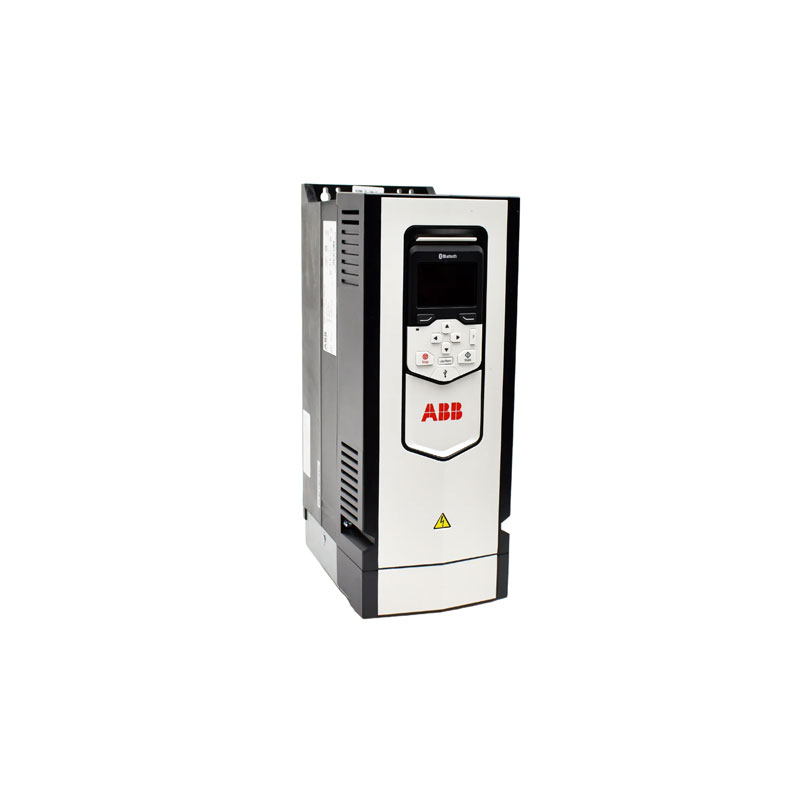

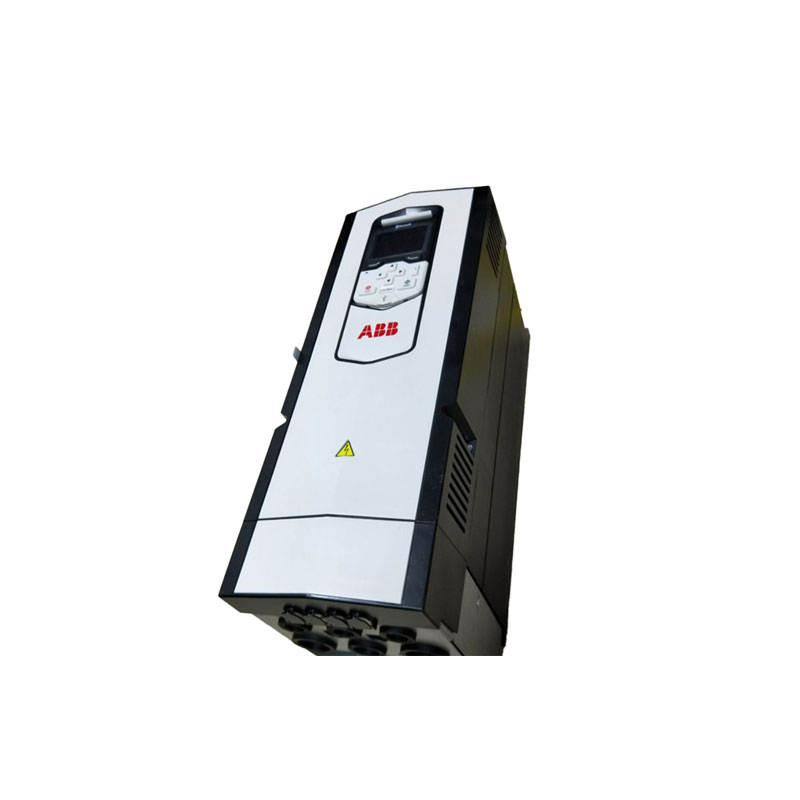

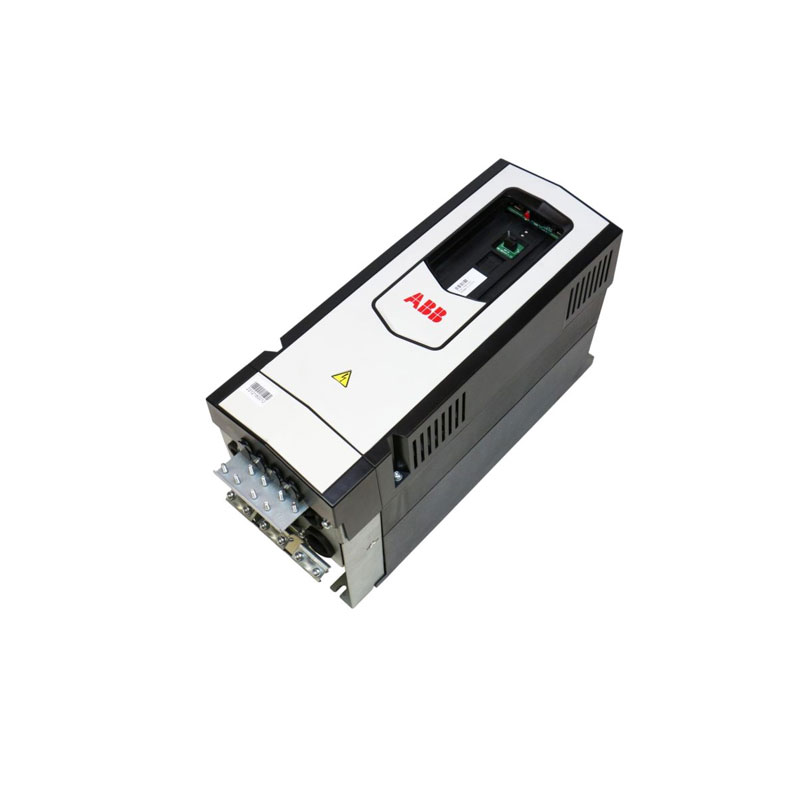

The ABB ACS880-01-156A-5 is a 90 kW low-voltage AC drive designed for wall-mounted installation. It delivers 156 A output current and supports 500 V input voltage. This drive excels in heavy industries like oil and gas, mining, and chemical processing.

Core Value

The ABB ACS880-01-156A-5 solves the critical need for precise motor speed and torque control in harsh environments. Consequently, it reduces mechanical stress on connected equipment. Specifically, the drive ensures stable operation even during fluctuating loads. Furthermore, its built-in choke filters harmonics effectively. Therefore, users avoid costly external filtering hardware. This drive also includes a brake chopper for dynamic braking needs. In contrast, many competing units require separate modules. Consequently, the ACS880 series lowers total installation costs. Additionally, the drive supports multiple communication protocols. Specifically, it integrates easily with MODBUS, PROFIBUS, and EtherNet/IP. Thus, plant engineers achieve seamless system connectivity. Finally, the wall‑mount design saves valuable floor space. This feature is especially helpful in compact control rooms.

Technical Insights

The drive’s 156 A normal‑use output current ensures reliable power for 90 kW motors. Consequently, production lines experience fewer unexpected stoppages. The integrated EMC filter reduces electrical noise, extending sensor and cable life. Furthermore, the drive operates within a 40 °C ambient temperature limit, maintaining thermal stability. This parameter directly affects equipment lifespan in hot environments. The communication interface includes one RS‑485 port and one USB port. Therefore, technicians can perform quick diagnostics without opening the cabinet. Moreover, the drive includes six digital inputs and two analog inputs. These inputs allow flexible configuration for complex control schemes. Consequently, the ABB ACS880-01-156A-5 improves overall process efficiency by up to 5% compared to older drive models.

Installation and Maintenance Guide

First, mount the drive on a flat, non‑flammable vertical surface with adequate clearance for airflow. Leave at least 150 mm above and below the unit. Consequently, the internal cooling fan operates effectively. Second, use shielded motor cables with 360° grounding at both ends. This practice minimizes electromagnetic interference and prevents nuisance trips. Third, during commissioning, always run the automatic motor identification routine. This step optimizes control parameters for the connected motor. As a result, the drive achieves 150% braking torque without external resistors. Additionally, schedule periodic terminal torque checks every six months. Loose connections can cause overheating. Finally, keep the enclosure door closed during normal operation to maintain IP21 protection.
