Product Overview

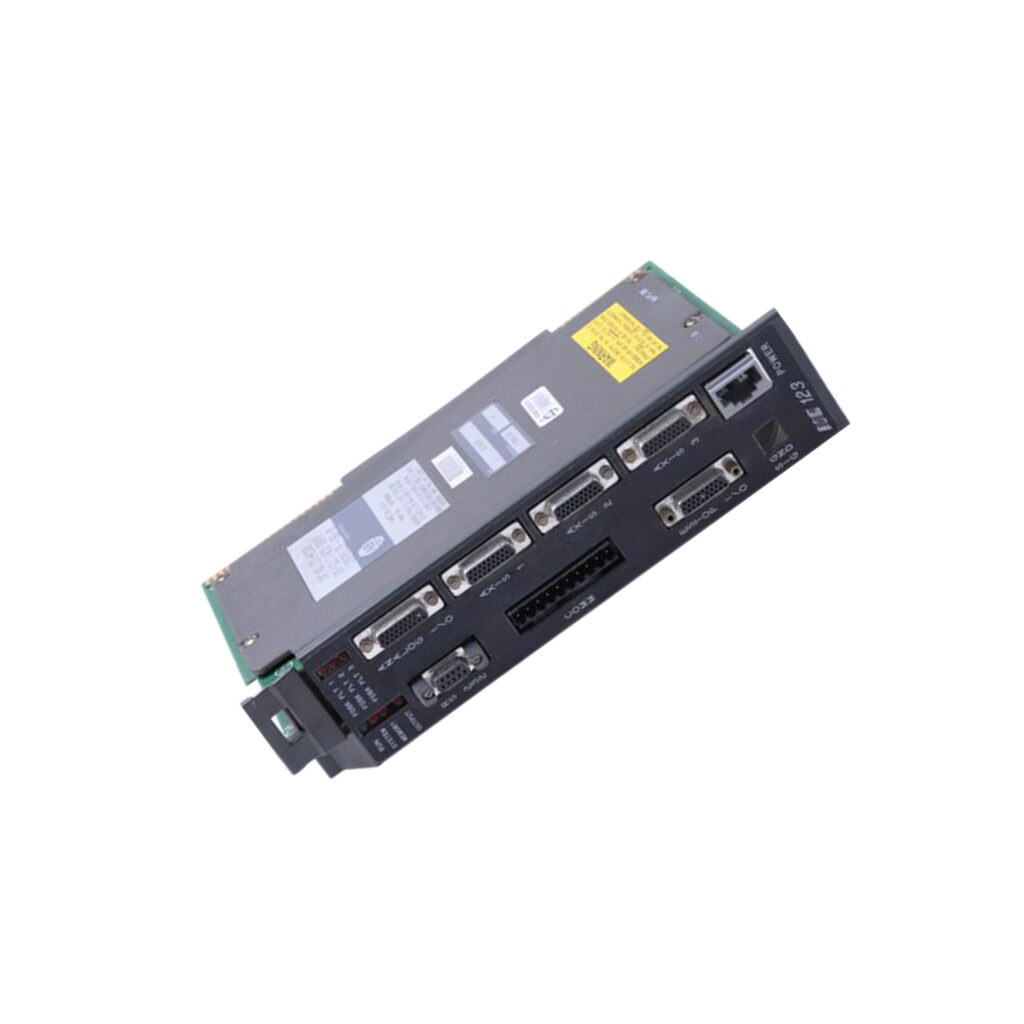

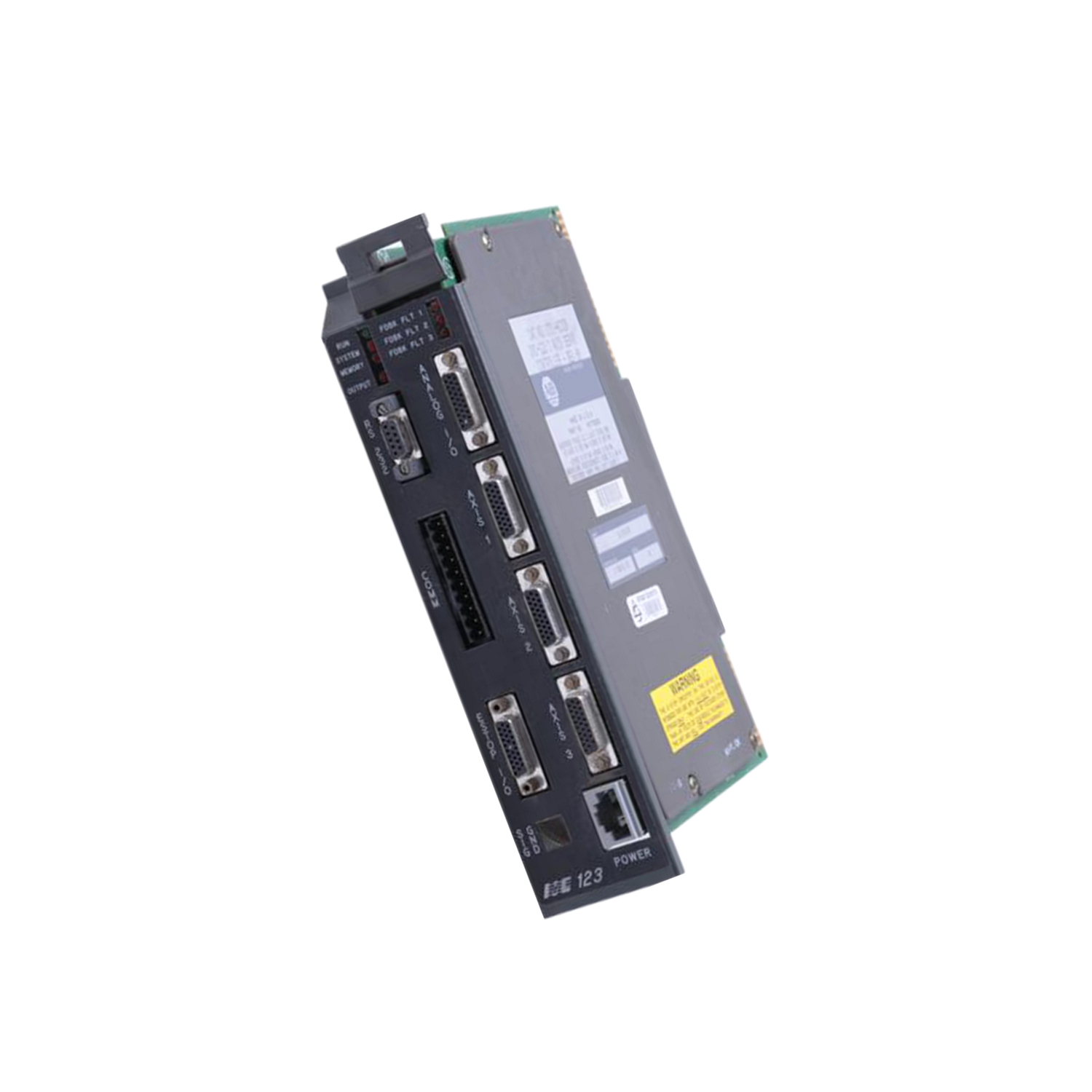

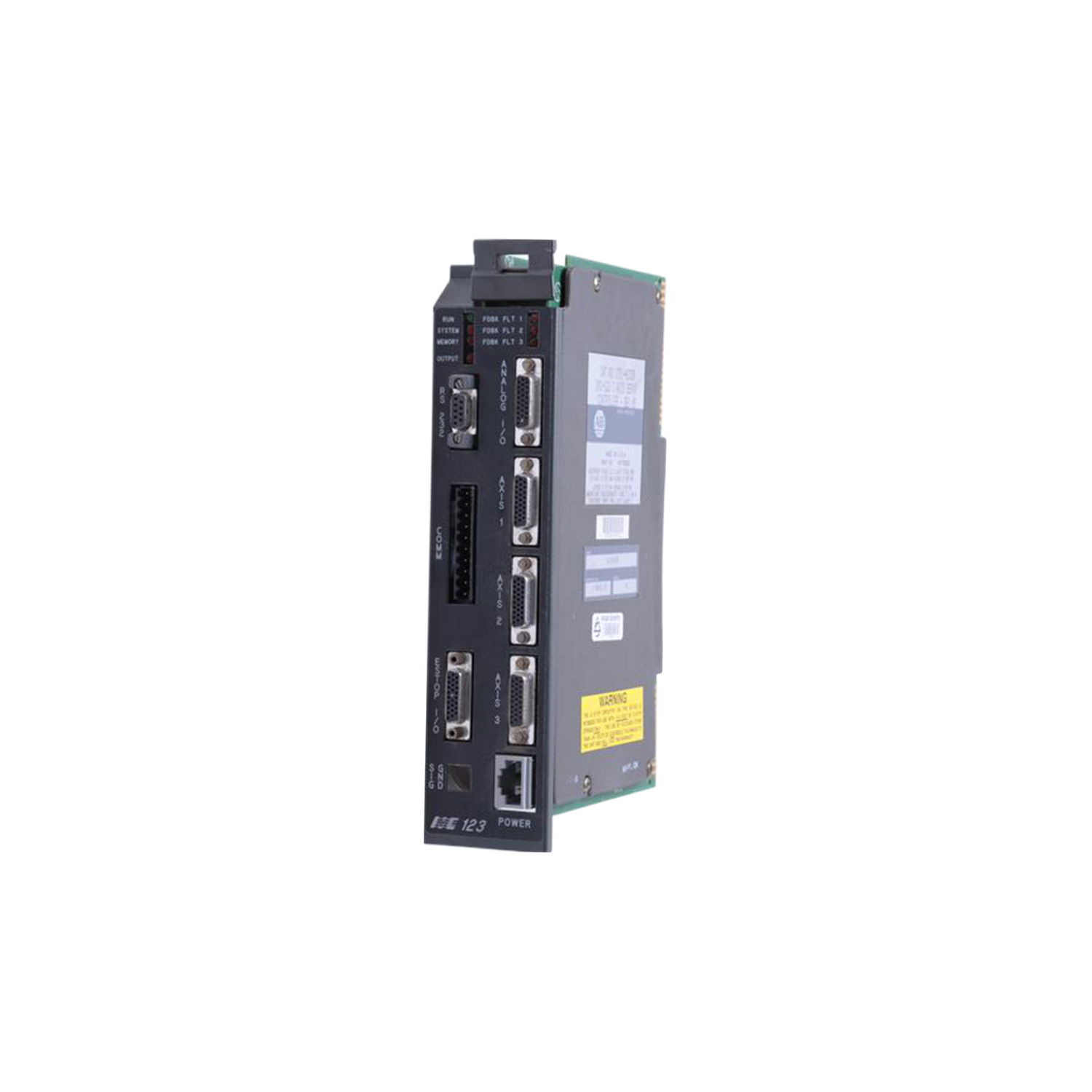

The 1771-HS3CR is a 3-axis servo controller from Allen-Bradley. It belongs to the PLC 5 series. This module fits any 1771 I/O chassis. It uses a 1771-PS7 power supply. The controller manages three servo axes. It receives encoder and resolver feedback. It also handles E-stop signals. The front panel has an RS-232 port. This port allows program upload and download. You can connect a hand-held pendant. The pendant helps debug MML programs. The module has 120V AC fuse voltage. The input frequency is 250 kHz differential. Output is +/-10V DC analog command. It occupies 2 slots per ES module. Update period is 2 ms per axis. Backplane current is 1.7 Amperes. The wiring arm is 1771-WA. Pulse capture time is 50-9.999 microseconds. Dimensions are 3.5 x 6.5 x 2.0 inches. It weighs about 1.36 kg.

Application Scenarios

This servo controller works in industrial automation. It controls three axes precisely. Typical uses include packaging machines. It also works with CNC machinery and robotics. It handles high-speed positioning tasks. The module integrates with PLC5 systems. You can use it for material handling. It also works for assembly lines. The controller supports complex motion profiles. It is ideal for multi-axis synchronization.

Technical Specifications

• Manufacturer: Rockwell Automation
• Brand: Allen-Bradley
• Part Number: 1771-HS3CR
• Module Type: 3 Axis Servo Controller
• Fuse Voltage: 120 Volts AC
• Max Input Frequency: 250 Kilohertz differential
• Outputs: +/-10 Volt DC analog command
• Slots: 2 per ES module
• Update Period: 2 ms/axis
• Backplane Current: 1.7 Amperes
• Wiring Arm: 1771-WA
• Pulse Capture Time: 50-9.999 Microseconds
• Dimensions: 3.5 x 6.5 x 2.0 in (89 x 165 x 51 mm)
• Weight: 1.36 kg
• Operating Temperature: 0-60 °C
• Relative Humidity: 5-95% non-condensing

Installation & Maintenance Guide

Follow these steps for installation. First, turn off power to the chassis. Insert the module into any slot. Ensure proper alignment. Connect the wiring arm 1771-WA. Use the 1771-CAS cable for power. Connect the 1771-PS7 power supply. Attach encoder and resolver cables. Configure the module via RS-232. Use the hand-held pendant for setup. For maintenance, keep the module clean. Check connections periodically. Update MML programs as needed. Store the module in a dry place. Avoid condensation. The temperature should stay 0-60 °C. Use only approved cables. Do not disassemble the module. For repairs, contact qualified personnel. This module requires no regular calibration.

Packing List

The package includes one 1771-HS3CR module. It also includes a memory module. The package includes a power module. The package includes an encoder module. The package includes a resolver. We may include an optional hand-held pendant. The package also contains documentation. We pack all items securely. We ship via FedEx, UPS, or DHL.
