Core Value

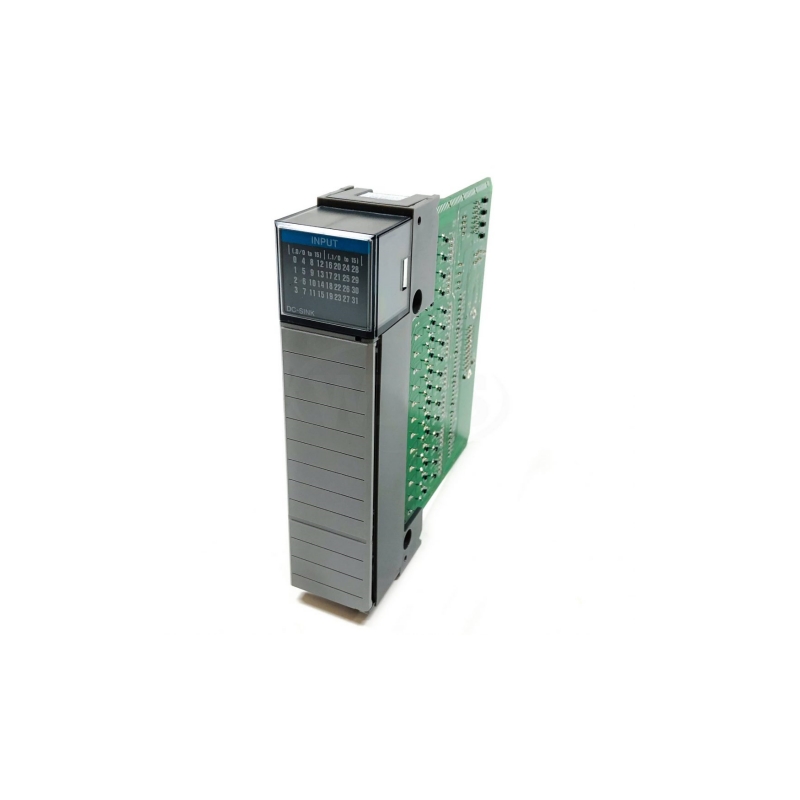

The Allen-Bradley 1746-IB32 input module resolves critical signal acquisition challenges in heavy industries like oil and gas. Specifically, the 1746-IB32 module provides 32 discrete inputs for monitoring limit switches and push buttons. Consequently, operators achieve reliable machine status feedback with exceptional noise immunity. This module significantly reduces costly downtime in manufacturing plants and chemical processing lines. Furthermore, its robust design ensures a long service life in harsh environments.

Technical Insights

The Discrete Input Module product type supports 32 individual input channels for monitoring digital signals. Furthermore, the SLC 500 series offers robust communication protocols for seamless data exchange. The module weight of 0.5 kilograms simplifies installation and reduces rail fatigue significantly. Consequently, these characteristics enhance production efficiency by enabling fast troubleshooting and quick repairs. Additionally, the lightweight design extends equipment lifespan by preventing mechanical stress on the backplane.

Installation and Maintenance Guide

First, always verify the backplane voltage before inserting the 1746-IB32 input module. Specifically, always use a digital multimeter to confirm 24V DC supply integrity. Furthermore, install the module in a clean, dry enclosure to prevent electrical contamination. Additionally, tighten the mounting screws carefully to the specified torque of 0.8 Nm. Finally, perform a continuity test on all 32 input wires to ensure proper termination. These steps guarantee optimal performance and reduce potential field failures.
